CNC boring machine (Double-position six-sided drilling machine)
數控鉆(zhan)孔中心(xin)(雙工位六面鉆(zhan))
隱定:總線控制(zhi)技術，雙工位(wei)，雙通道(dao)
方便:一機多屏技術，在不同工位進行同步(bu)操作(zuo)，同步(bu)顯示
智能:單工(gong)位(wei)4鉆(zhan)包，雙工(gong)位(wei)2鉆(zhan)包工(gong)作模式根據僅懺莧度目動列時(shi)安全:預判碰撞干(gan)涉，采用實時(shi)避(bi)讓算法
Stability: Buscontrol technology, double working tables, double paths
Convenience: Single machine,with multi-screentechnology,whichcanoperate and displaysynchronously indifferent working tables.
Intelligent: Working mode,single working table with 4 driling heads, double working
tables with 2 drilling heads, is automatic ally judged according to the width of workpieces.Safety:Predicting collision and intervention by usingreal-time avoid an cealgorithm.
自動掃碼加工(選配)
Automatic code scanning (optional)
雙(shuang)工位雙(shuang)臺面同時加工
Simultaneous processing ofdouble-station and double-tables
鉆頭布局示意圖(tu)（(HB622P)
Drill bit layout diagram

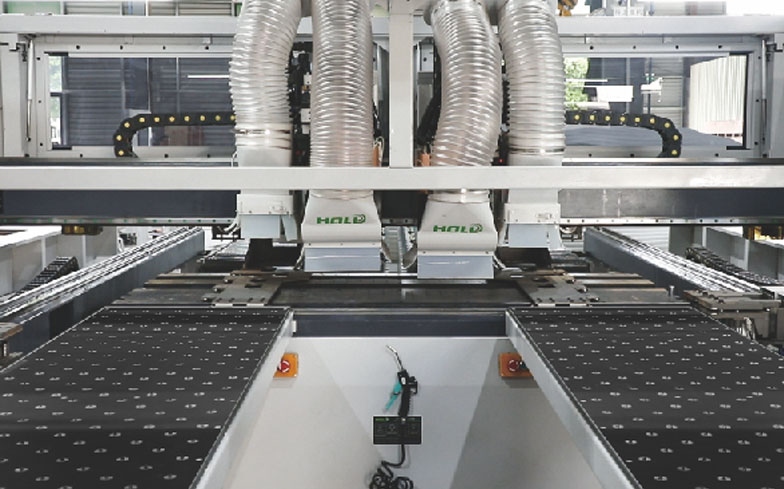

雙(shuang)工(gong)位工(gong)作臺面(mian)
Double position working table
現(xian)場操作(zuo)視頻
Operating video
產品參數(shu)
| 內容 | 設備型號 | HB622P |
|---|---|---|
銑槽(cao)加工主軸 Milling spindle | 總功率 Total power | 37kw |
主軸電機功率 Spindle power | 6kw x 4 | |
主軸轉速 Rotation speed | 18000rpm | |
最(zui)高定位速(su)度(du) Max.positioning speed | X軸速度 X axis speed | 130m/min |
Y軸速度 Y axis speed | 100m/min | |
Z軸速度 Z axis speed | 30m/min | |
A軸速度 A axis speed | 60m/min | |
U軸速度(du) U axis speed | 130m/min | |
V軸(zhou)速度 V axis speed | 100m/min | |
W軸速度(du) W axis speed | 30m/min | |
鉆孔組合(he)裝置 Boring head combination device | 上垂直(zhi)鉆 Up vertical spindle | 12支 x 2 |
上水(shui)平鉆 Up horizontal spindle | X方向:(2+2) x2 Y方(fang)向(xiang):(2+2) x2 | |
下垂直鉆 Down vertical spindle | 18支 | |
加(jia)工尺寸范圍 Working range | 板材最小寬度 Min.width of workpiece | 30mm |
板材(cai)最大寬度 Max.width of workpiece | 單工位(wei)1210mm 雙工位≤650mm | |
板材最小(xiao)長度Min.length of workpiece | 120mm | |
板(ban)材最大(da)長度 Max.length of workpiece | 3100mm | |
板材最(zui)小厚度 Minthickness of workpiece | 10mm | |
板材最大厚度 Max.thickness of workpiece | 55mm | |
其他參數 Other parameter | 吸塵口 Suction port | 上吸塵(chen)口(kou)Φ200mm x 2 下吸塵口Φ100mm x 2 |
設(she)備尺寸 Package size | 7300×4000×2500mm | |
重量 Weight | 6500kg |
注(zhu):本(ben)司對產品規格(ge)及(ji)設(she)計(ji)細節不(bu)斷(duan)改(gai)良更新,上述(shu)功能與參(can)數(shu)可能有(you)優化改(gai)進,請與授權銷(xiao)售(shou)單位確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
