雙面同時鉆孔加工
雙面同時銑槽加工
- 產品詳情
- 參數視頻
CNC drilling machine (Six-sided drill)
數控鉆孔中心(六面鉆)
雙面(mian)同時(shi)鉆孔加(jia)工(gong)
Double-faced drilling simultaneously
雙(shuang)面同(tong)時銑槽加工
Double-faced slotting simultaneously

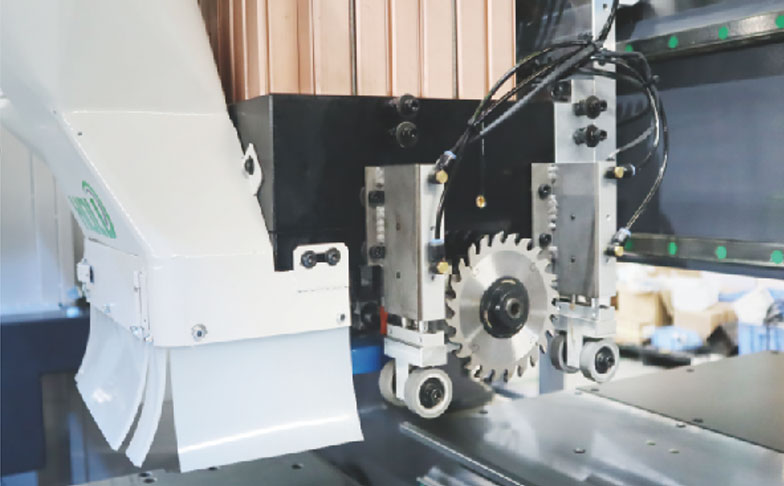

鉆包帶鋸片(pian)(可選配(pei))
Drill head with blade (optional）

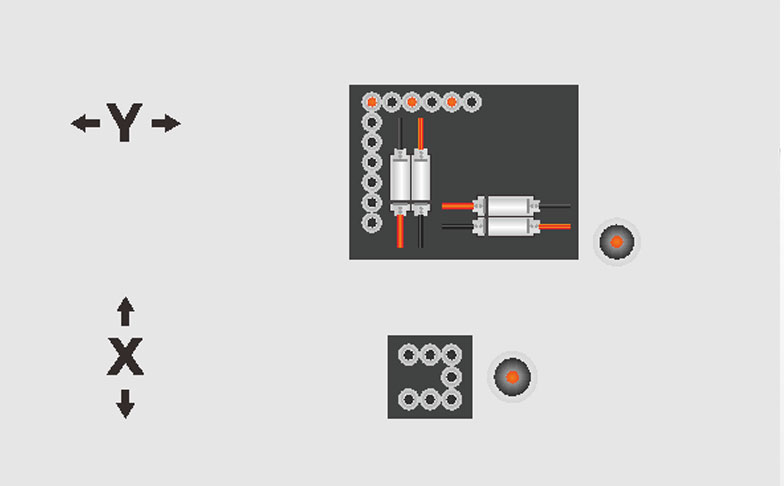

鉆頭布局示(shi)意圖(HB62G)
Dill bit layout diagram
產(chan)品參(can)數
| 內容 | 設備型號 | HB62G |
|---|---|---|
銑槽(cao)加工(gong)主軸 Milling spindle | 總功(gong)率 Total power | 20kw |
主軸電機功率 Spindle power | 3kw x 2 | |
主軸轉速(su) Rotation speed | 18000rpm | |
最高定位速(su)度 Max.positioning speed | X軸速度 X axis speed | 130m/min |
Y軸速度 Y axis speed | 100m/min | |
Z軸速度(du) Z axis speed | 30m/min | |
A軸速度(du) A axis speed | 60m/min | |
U軸速度 U axis speed | 130m/min | |
V軸(zhou)速度 V axis speed | 100m/min | |
W軸速度 W axis speed | 30m/min | |
鉆孔(kong)組合(he)裝置 Boring head combination device | 上垂(chui)直鉆 Up vertical spindle | 12支 |
上水平鉆 Up horizontal spindle | X方向:(2+2) Y方向:(2+2) | |
下垂直鉆 Down vertical spindle | 7支 | |
加工尺寸范圍 Working range | 板材最小寬度 Min.width of workpiece | 30mm |
板材(cai)最大寬度 Max.width of workpiece | 1210mm | |
板(ban)材(cai)最小長度Min.length of workpiece | 120mm | |
板材最大長度 Max.length of workpiece | 3100mm | |
板(ban)材最小厚度 Minthickness of workpiece | 10mm | |
板材最大厚度(du) Max.thickness of workpiece | 55mm | |
其他參數 Other parameter | 吸塵口 Suction port | 上吸塵口Φ200mm 下吸塵口中Φ100mm |
設備(bei)尺(chi)寸 Package size | 5100×2510×2500mm | |
重量 Weight | 3300kg |
注(zhu):本司對產品規格及設計細節(jie)不(bu)斷改良更新,上述功能(neng)與參(can)數可(ke)能(neng)有(you)優化改進,請與授權(quan)銷(xiao)售(shou)單位確認(ren)。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
