HB4KD 木工鉆床問選配自動接料平臺(tai))
Drilling machine with automnatic receiving plaform)
適用于抽屜版鉆孔加工
Suitable for drilling of drawer panel

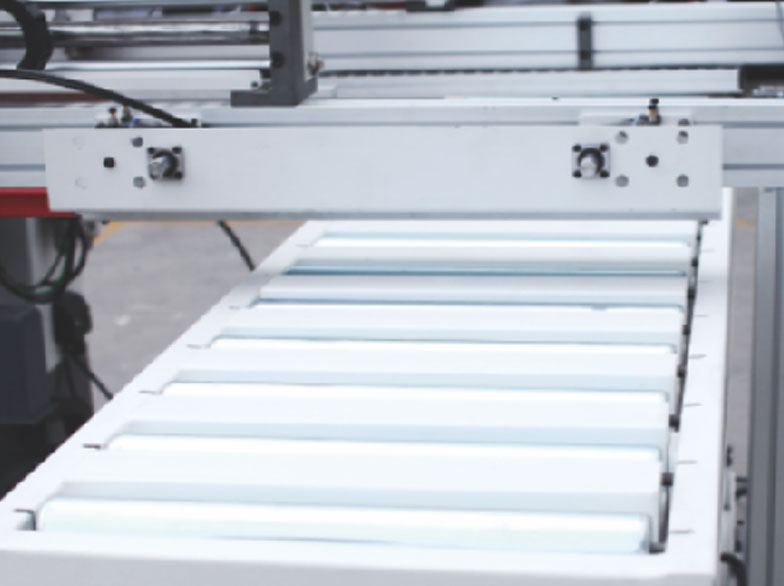

自動接料平臺(tai)
Automatic receiving platformoptional)
現場操作視頻
產品參數
| 設備型號 | HB4K | HB4KD |
|---|---|---|
| 鉆軸間距 Drill axis distance | 32mm | 32mm |
水平(ping)鉆頭數 Quantity of horizontal drill | 21x2 | 21x2 |
垂直(zhi)鉆(zhan)頭數 Quantity of vertical drill | 21x2 | (11+11)x2 |
| 送料電機功率 Feeding motor power | 1.5kw | 1.5kw |
| 送料頻率 Feeding frequency | 20件/min | 20件/min |
水平鉆(zhan)排(pai)功率 Horizontal Drill Power | 2x1.5kw | 2x1.5kw |
垂直鉆(zhan)排功率 Vertical drill power | 1.5kw | 2x1.1kw |
電機轉速 Scoring saw blade specification | 2800rpm | 2800rpm |
最大垂直(zhi)鉆孔深度 Max. vertical drilling depth | 40mm | 40mm |
最(zui)大水平鉆(zhan)孔深度(du) Max. horizontaldrilling depth | 40mm | 40mm |
最小(xiao)工件(jian)寬度(X軸) Min. workpiece width (X axis) | 235mm | 235mm |
最大工件(jian)寬度(X軸) Max. workpiece width (X axis) | 1400mm | 1400mm |
最大工件厚度(Z軸) Max. working thickness(Z axis) | 40mm | 40mm |
工件長(chang)度(du)(Y軸) Workpiece length (Y axis) | 40-280mm (雙(shuang)工位(wei)Double workpieces) 40-580mm (單工位Single workpiece) | 40-280mm (雙工(gong)位Double workpieces) 40-580mm (單工位Single workpiece) |
外形尺(chi)寸(cun) Dimension | 2750x2550x1700mm | 2750x2550x1700mm |
注:本司(si)對(dui)產(chan)品規格及設計細節不(bu)斷(duan)改(gai)良(liang)更(geng)新,上述(shu)功能與參數可(ke)能有優(you)化改(gai)進,請與授權(quan)銷售單位(wei)確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
