數控自動掃碼
實時鉆頭分布
三面高效鉆孔
- 產品詳情
- 參數視頻
HB8042
Automatic feeding multi-row drill
自動送料多(duo)排鉆

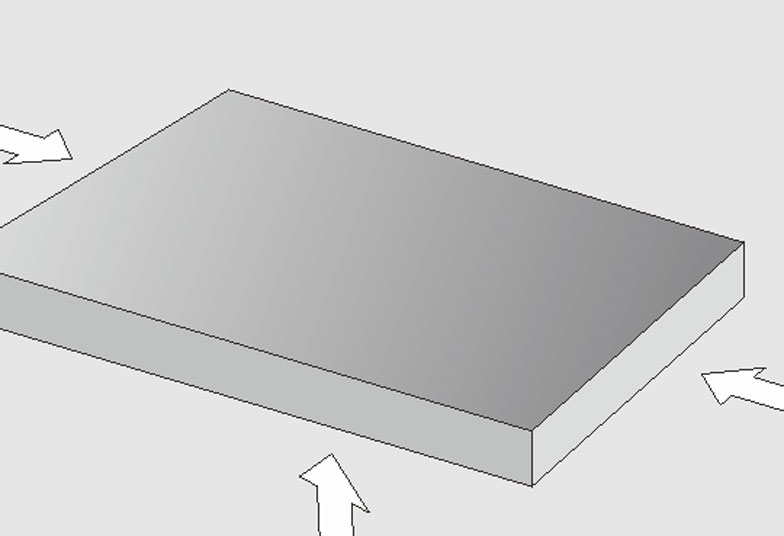

三(san)面(mian)高效鉆(zhan)孔
Three sided efficient dnlling
產品參(can)數
| 設備型號 | HB8042 |
|---|---|
水平(ping)鉆軸最大間(jian)距 Max.width of workpiece | 2450mm |
| 水平鉆軸最大間距 Max.distance of two horizontal drilling head | 640mm |
垂直鉆排(pai)最小間距 Max.thickness of workpiece | 128mm |
| 最大工件厚度 Max.thickness of workpiece | 50mm |
水(shui)平最大鉆孔深度(du) Max.depth of horizontal drilling head | 40mm |
垂直最大鉆孔(kong)深度(du) Max.depth of vertical drilling head | 70mm |
鉆軸轉速 Rotating speed of drilling spindles | 2800rpm(50HZ) |
垂直(zhi)箱功(gong)率 Vertical box power | |
| 垂直鉆排功率 Vertical drilling power | 1.1kw x 2 |
| 水平鉆排功率 Horizontal drilling power | 1.5kw |
送料電機(ji)功(gong)率 Feeding motor power | 0.5kw x 2 |
送料速度 Feeding speed | 70m/min |
工作氣壓 Working pressure | 0.6-0.8Mpa |
機械尺寸(mm) Dimension of machine | 3850x2500x1800mm |
裝箱尺寸(mm) Packing size | 3900x1320x1850mm |
注:本(ben)司對產(chan)品規格(ge)及(ji)設計(ji)細(xi)節不斷改良更新(xin),上述功能(neng)與參(can)數(shu)可能(neng)有優(you)化改進,請與授權銷售單位確(que)認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
