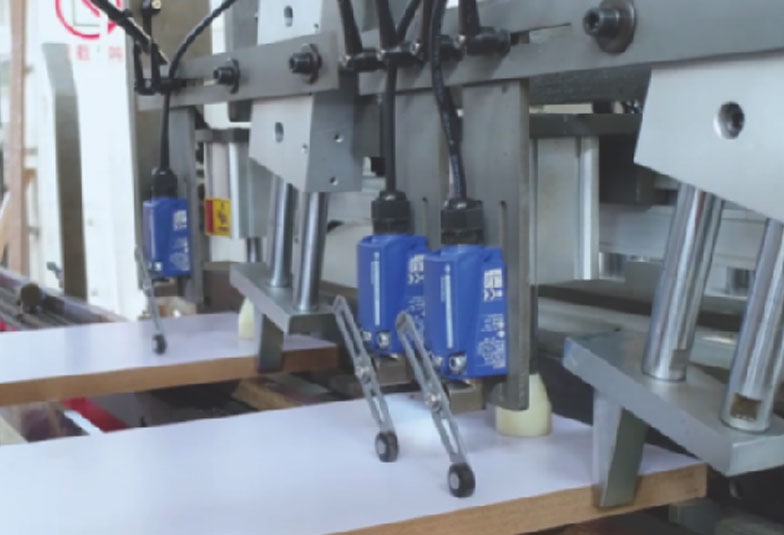

雙板同時加工
抽屜板鉆孔機雙定位
- 產品詳情
- 參數視頻
HBSKD 木工(gong)鉆床(chuang)(抽屜板鉆孔機(ji)雙定位)
Dnlling machine (the drawer drilling machine double positions)
適用于(yu)定(ding)制家具、板式家具櫥柜衣柜、辦(ban)公家具
Applies to custorm fumiture, panel furnitureCabinet wardrobe, office furniture
現場操作視頻
產(chan)品參數
| 設備型號 | HB5K | HB5KD |
|---|---|---|
| 鉆軸間距 Drill axis distance | 32mm | 32mm |
水(shui)平鉆(zhan)頭數(shu) Quantity of horizontal drill | 21x2 | 21x2 |
垂直鉆(zhan)頭數 Quantity of vertical drill | 21x3 | (11+11)x3 |
| 送料電機功率 Feeding motor power | 1.5kw | 1.5kw |
| 送料頻率 Feeding frequency | 20件/min | 20件/min |
水平(ping)鉆排(pai)功率 Horizontal Drill Power | 2x1.5kw | 2x1.5kw |
垂(chui)直鉆(zhan)排(pai)功率 Vertical drill power | 1.5kw | 2x1.1kw |
電機轉(zhuan)速 Scoring saw blade specification | 2800rpm | 2800rpm |
最大垂(chui)直鉆孔深(shen)度 Max. vertical drilling depth | 40mm | 40mm |
最(zui)大水(shui)平鉆孔深度 Max. horizontaldrilling depth | 40mm | 40mm |
最小工(gong)件寬度(du)(X軸(zhou)) Min. workpiece width (X axis) | 350mm | 350mm |
最大工件(jian)寬度(X軸(zhou)) Max. workpiece width (X axis) | 1400mm | 1400mm |
最大工件(jian)厚度(du)(Z軸) Max. working thickness(Z axis) | 40mm | 40mm |
工件長度(du)(Y軸) Workpiece length (Y axis) | 40-280mm (雙工位Double workpieces) 40-580mm (單工(gong)位Single workpiece) | 40-280mm (雙工位Double workpieces) 40-580mm (單(dan)工位Single workpiece) |
外形尺寸 Dimension | 2750x2550x1700mm | 2750x2550x1700mm |
注:本(ben)司對產(chan)品規格及設計(ji)細節不斷(duan)改良更新(xin),上(shang)述功能與(yu)參數可能有優化改進,請與(yu)授權銷售單位(wei)確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
