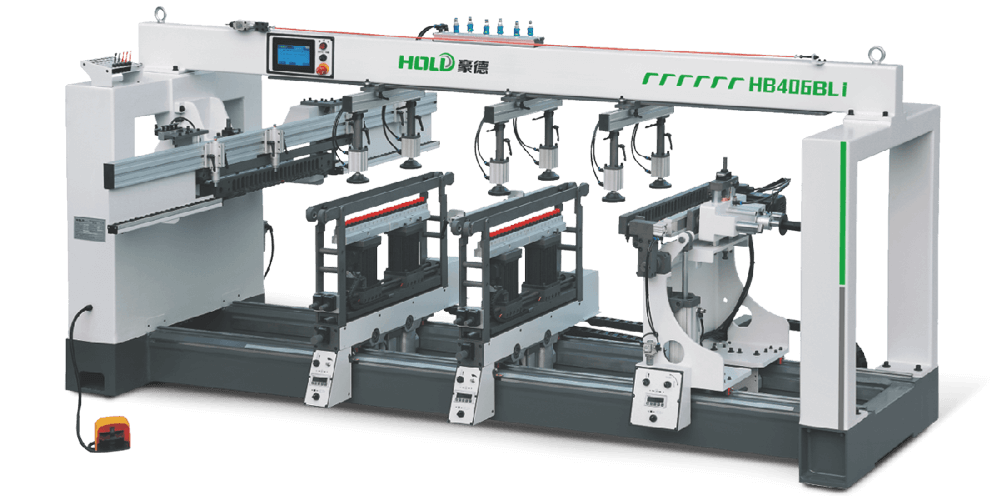

HB4O6BL米工鉆床(四排鉆)
Drilling machine (four-row drill
產品參數
| 設備型號 | HB406BLi |
|---|---|
水平(ping)鉆軸最(zui)大間(jian)距 Max.width of workpiece | 2450mm |
| 水平鉆軸最大間距 Max.distance of two horizontal drilling head | 640mm |
垂(chui)直鉆排最小間距 Max.thickness of workpiece | 128mm |
| 最大工件厚度 Max.thickness of workpiece | 78mm |
水平最大鉆孔深度 Max.depth of horizontal drilling head | 40mm |
垂直最大鉆孔深度(du) Max.depth of vertical drilling head | 70mm |
鉆軸(zhou)轉速 Rotating speed of drilling spindles | 2800rpm(50HZ) |
垂(chui)直箱功率 Vertical box power | |
| 垂直鉆排功率 Vertical drilling power | 1.5kw |
水平鉆排(pai)功率 Horizontal drilling power | 1.5kw |
工作氣(qi)壓 Working pressure | 0.6-0.8Mpa |
機械尺寸(mm) Dimension of machine | 3850x2500x1800mm |
裝箱(xiang)尺(chi)寸(mm) Packing size | 3900x1350x1800mm |
注:本司對產品規格及設計細節不斷改(gai)良(liang)更新(xin),上述功能與(yu)參數可能有優化(hua)改(gai)進(jin),請與(yu)授權銷售單位(wei)確認(ren)。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
