數控自動掃碼
實時鉆頭分布
四面高效鉆孔
- 產品詳情
- 參數視頻
HB844
Automatic feeding multi-rowdrill:
自動送料(liao)多排(pai)鉆(zhan)

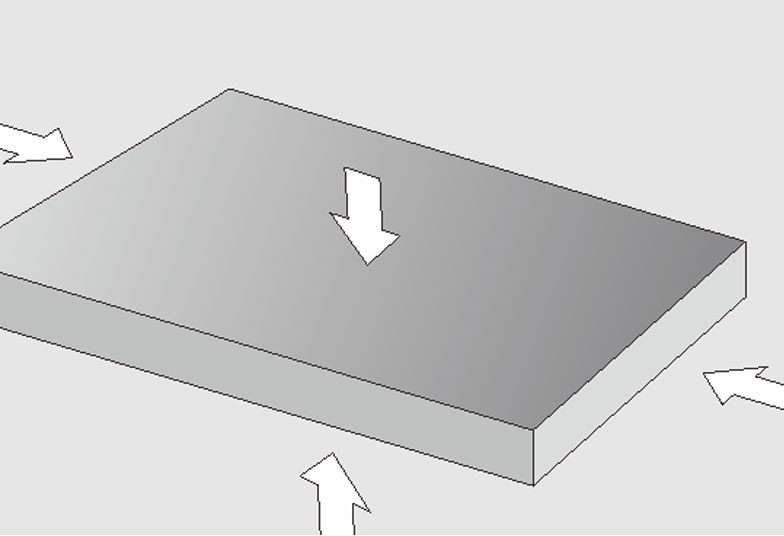

四面高(gao)效鉆(zhan)孔(kong)
Four-sided efficient drilling
產品參(can)數
| 設備型號 | HB8442 |
|---|---|
水(shui)平鉆(zhan)軸(zhou)最大間(jian)距(ju) Max.width of workpiece | 2450mm |
| 水平鉆軸最大間距 Max.distance of two horizontal drilling head | 640mm |
垂直(zhi)鉆排(pai)最小(xiao)間距 Max.thickness of workpiece | 128mm |
| 最大工件厚度 Max.thickness of workpiece | 50mm |
水平最大鉆孔深度(du) Max.depth of horizontal drilling head | 40mm |
垂直最大鉆孔(kong)深度 Max.depth of vertical drilling head | 70mm |
鉆軸轉速 Rotating speed of drilling spindles | 2800rpm(50HZ) |
垂直箱功率 Vertical box power | |
| 垂直鉆排功率 Vertical drilling power | 1.1kw x 2 |
| 水平鉆排功率 Horizontal drilling power | 1.5kw |
送料電機功率 Feeding motor power | 0.5kw x 2 |
送料速(su)度 Feeding speed | 70m/min |
工作氣(qi)壓 Working pressure | 0.6-0.8Mpa |
機械尺寸(mm) Dimension of machine | 4250x3100x2000mm |
裝箱(xiang)尺寸(mm) Packing size | 4300x2000x2050mm |
注:本司對產品規格及設(she)計細節不(bu)斷改良更新,上述功能與參數可能有優(you)化改進,請(qing)與授權銷(xiao)售(shou)單位確認(ren)。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
