數控自動掃碼
實時鉆頭分布
四面高效鉆孔
- 產品詳情
- 參數視頻
HB8442K
CNCautomatic feeding multi-rowdrill
數(shu)控自(zi)動送(song)料多(duo)排鉆
適用于定制家具、板式家具、櫥柜衣柜、辦(ban)公家具
Applies to custom furmiture, panel fumiture
Cabinet wardrobe,office fumiture

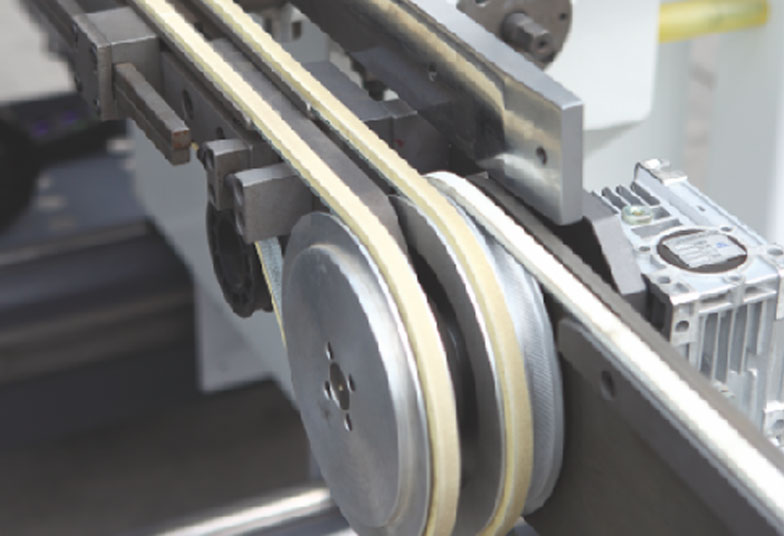

皮帶式自動送料裝(zhuang)置
Belt-type automatic feeding device

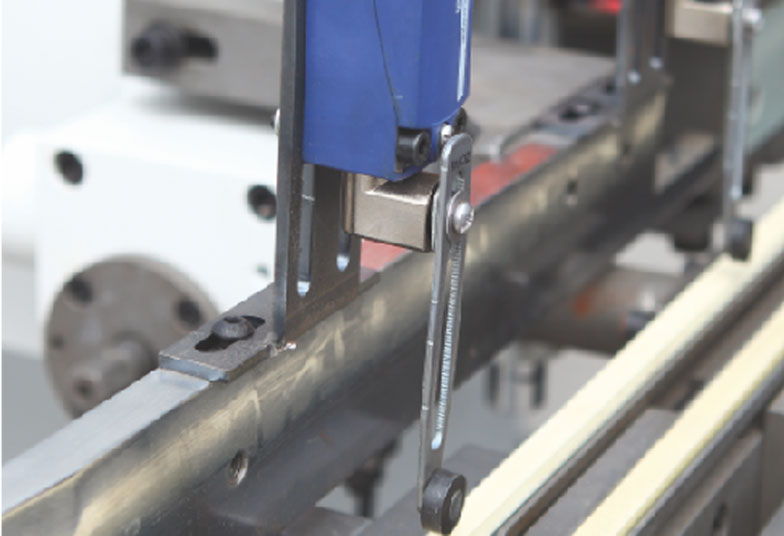

精準定位感應裝置
Precision posltioning induction device

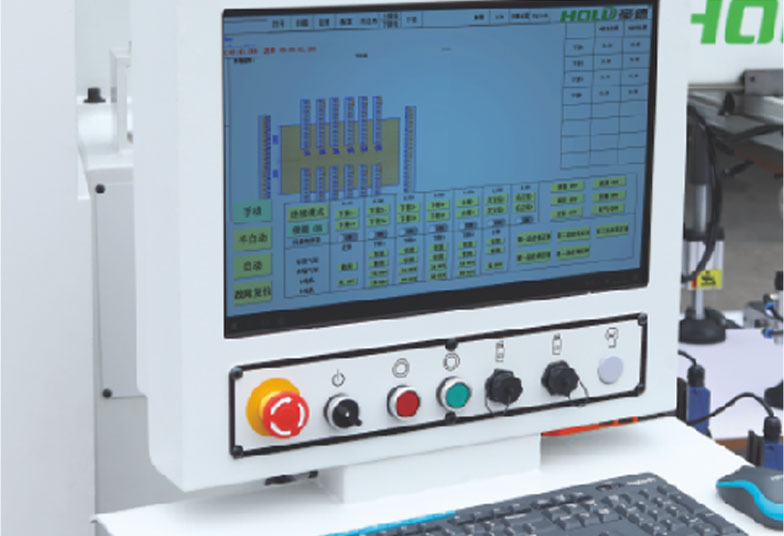

掃(sao)碼后自動顯示(shi)鉆頭的分布
After ecanning the barcode, the dieplaywill show the drill bt distribotion

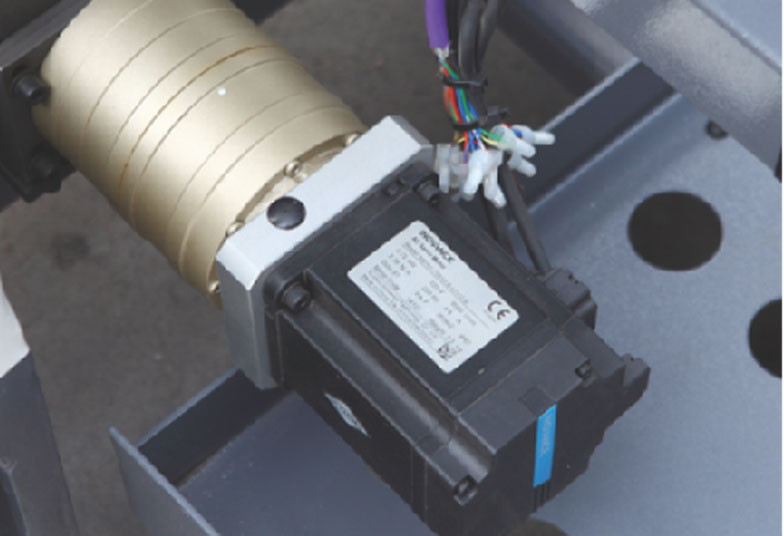

高精密伺服電機
High precision servo motor

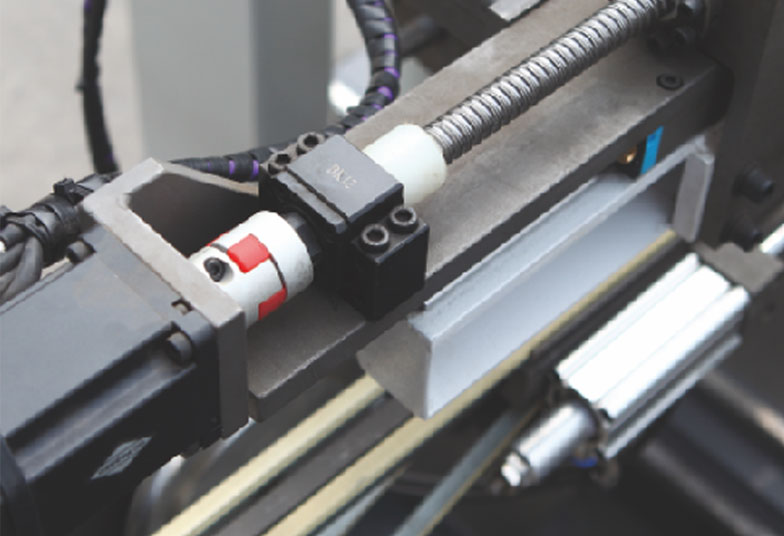

絲(si)桿精密傳(chuan)動
Precision ecrew drve
產品參(can)數
| 設備型號 | HB8442K |
|---|---|
水平鉆軸最大間(jian)距 Max.width of workpiece | 2450mm |
| 水平鉆軸最大間距 Max.distance of two horizontal drilling head | 640mm |
垂直(zhi)鉆排最小間距 Max.thickness of workpiece | 128mm |
| 最大工件厚度 Max.thickness of workpiece | 50mm |
水(shui)平(ping)最(zui)大鉆(zhan)孔深(shen)度 Max.depth of horizontal drilling head | 40mm |
垂直(zhi)最大鉆孔深度 Max.depth of vertical drilling head | 70mm |
鉆軸轉速(su) Rotating speed of drilling spindles | 2800rpm(50HZ) |
垂(chui)直箱功率 Vertical box power | |
| 垂直鉆排功率 Vertical drilling power | 1.1kw x 2 |
| 水平鉆排功率 Horizontal drilling power | 1.5kw |
送料電機功率(lv) Feeding motor power | 0.5kw x 2 |
送(song)料速度 Feeding speed | 70m/min |
工作氣壓 Working pressure | 0.6-0.8Mpa |
機械尺寸(mm) Dimension of machine | 4600x3100x2000mm |
裝箱尺寸(mm) Packing size | 4500x2300x2050mm |
注:本司(si)對產品規格及設計(ji)細節不(bu)斷改良(liang)更新,上(shang)述功(gong)能與(yu)參(can)數(shu)可能有優化改進,請與(yu)授權銷售單位確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
