門套板(ban)開(kai)料(liao)、木門規方一體
Door pocket and door squaring two-in-one
2組(zu)縱(zong)鋸+1組(zu)橫鋸+1組(zu)銑型(xing)主軸結構
2 sets of longitudinal saws F1.set cross saw+ imilling spindle
門扇居(ju)中(zhong)定位(wei)加(jia)工(gong)模式+門套板側靠定位(wei)加(jia)工(gong)模式
Positioning:Door panel positioning inmiddle+door pocket side alignment

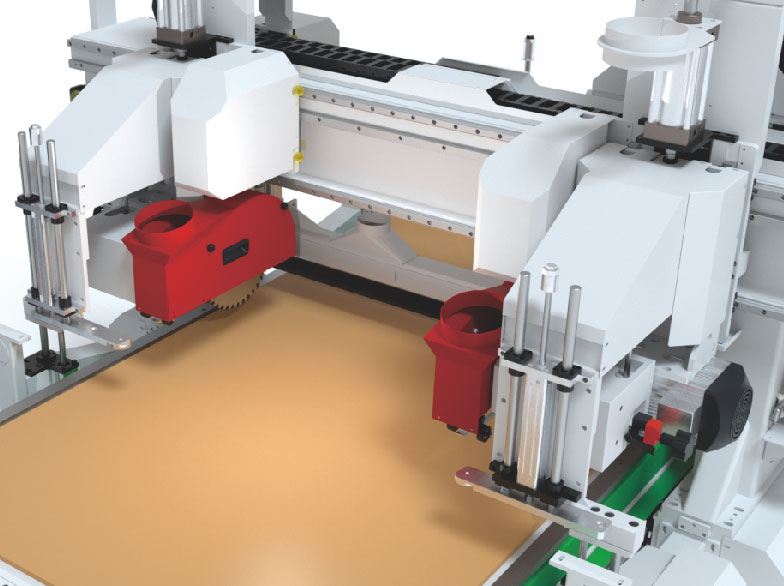

雙組縱鋸(ju)結(jie)構+側靠/居(ju)中定位(wei)
Double groups of longitudinal saw structure + side alignment/middle positioning
1組橫(heng)鋸+1個銑型主軸
1 cross saw +1 milling spindle

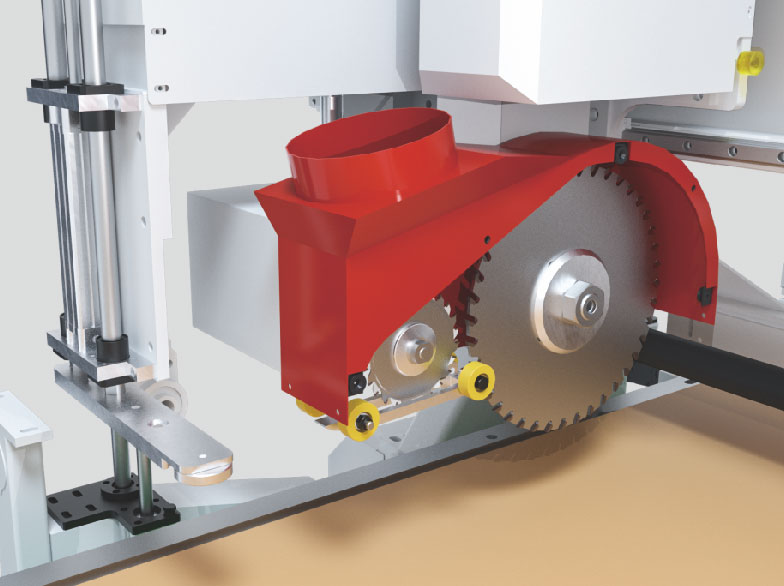

精(jing)密子母鋸片組(zu)結構
Precise main saw and sooring saw blade group structure

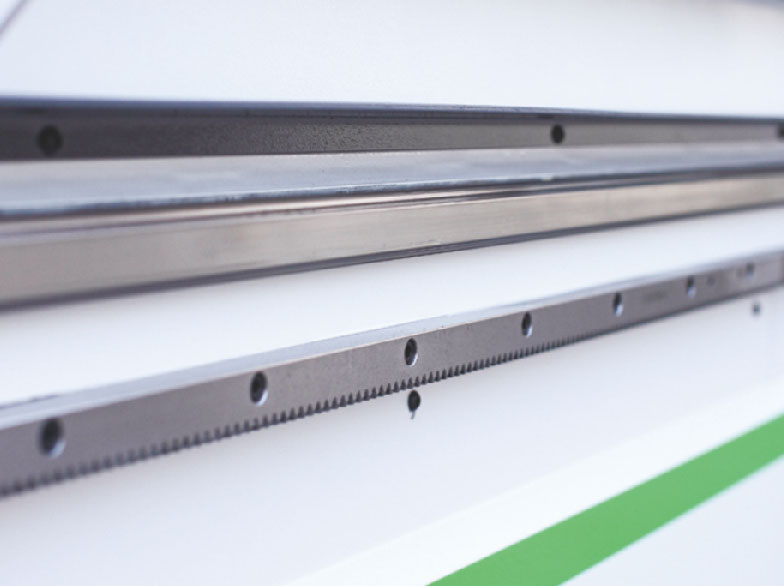

精(jing)密(mi)導軌(gui)+齒條傳動結(jie)構
Precision guide rail + rack drive struoture

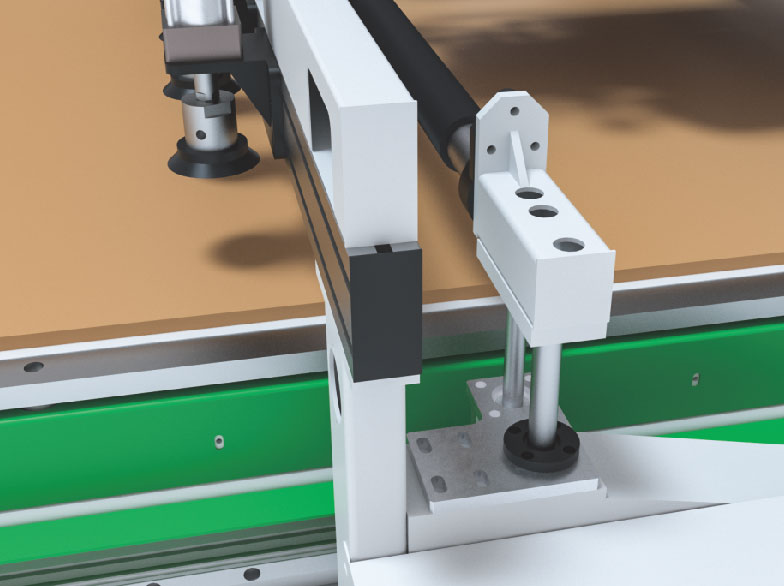

輔助壓(ya)料壓(ya)輯
Auxiliary press roller

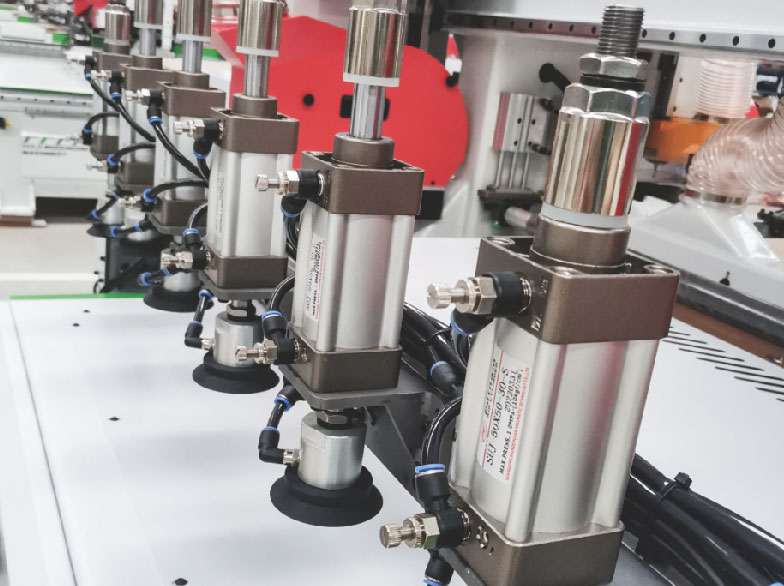

前后標(biao)配上下料真空吸盤
Front and rear standard loading and unloadingvacuum suction cups
產品參數
| 設備型號 | MTS300 |
|---|---|
| 加工尺寸 Processing size | 1220×2800×60mm |
副(fu)鋸功率 Scoring saw power | 1.1kw |
空行(xing)速(su)度(du) idle speed | 80m/min |
| 副鋸轉速 Scoring saw speed | 18000 r/min |
| 工作速度 Working speed | 12-18m/min |
副鋸(ju)片(pian)規格 Scoring saw blade specification | Φ120×Φ22mm |
主鋸片規格 Processing thickness | Φ300×Φ30 |
副鋸片規格 Scoring saw blade specification | Φ120×Φ20 |
主(zhu)軸功率 Spindle power | 5.8kw |
總功率 Total power | 33kw(未含真空泵) |
主鋸功率 Main saw power | 5.8kw |
設備尺寸 Equipment size | 4700×2850×3050mm |
主鋸轉(zhuan)速 Main sawspeed | 3000 r/min |
工作臺離(li)地高(gao)度 Table height | 840mm |
主鋸片(pian)規格 Main saw blade specification | Φ300×Φ30mm |
| 吸塵口數量 Suction port quantity | 200×1+Φ100×1 |
重量(liang) Weight | 3700KG |
木門最小(xiao)居中寬度(du) Wooden door minimum center width | 300mm |
水循(xun)環真空泵功率(lv) Water circulation vacuum pump power | 11kw |
注:本(ben)司對(dui)產品規格及設(she)計細(xi)節不斷(duan)改良更(geng)新,上述功能(neng)與參數可能(neng)有優化改進(jin),請與授權(quan)銷售單位確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
