木門快速規方、四邊鋸切
精準居中定位
- 產品詳情
- 參數視頻
木門快速(su)規方、四邊(bian)鋸(ju)切
Fast squaring and four-side cutting

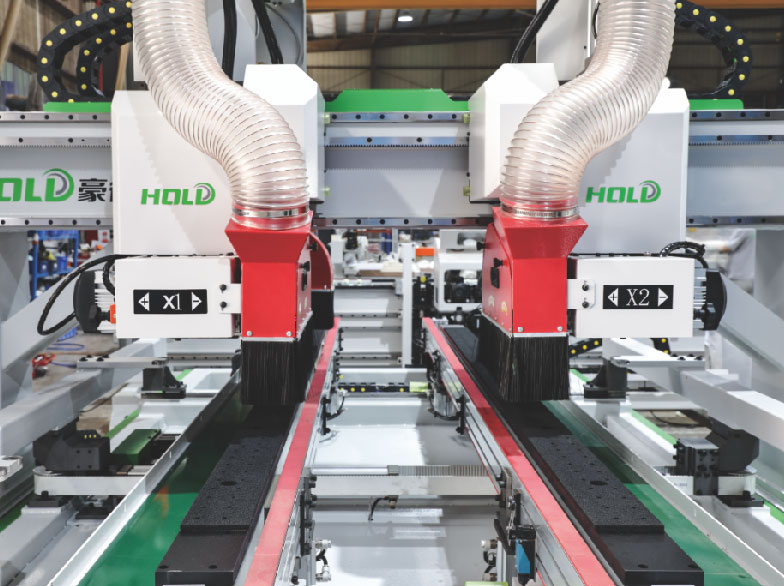

2組縱鋸+1組橫鋸結構
2 sets of longitudinal saws 1set of cross saw
精準居中定(ding)位
Precise positioning in middle
2組(zu)縱鋸+1組(zu)橫鋸結構
2 sets of longitudinal saws +1 set of cross saw
精(jing)密子母鋸片組結構
Precise main saw and sooring saw blade group structure
尾料收集皮帶(dai)輸(shu)送結(jie)構
Waste material collection belt conveyor structure
精密導軌(gui)+齒條傳動結構
Precision guide rail +rack drive structure
通過(guo)式皮帶(dai)進(jin)出料輸送結構(gou)(雙電機(ji))
Through belt feeding and discharging conveying structure (dual motor)
雙前擋(dang)定(ding)位結構
Double front stopper positioning structure
產品參(can)數
| 設備型號 | HV321 |
|---|---|
| 最大加工長度 Maximum processing length | 2700mm |
加工寬度 Processing width | 260~1200mm |
加(jia)工厚度 Processing thickness | 30~60mm |
最高(gao)切割(ge)速(su)度 Maximum cutting speed | 18m/min |
主鋸(ju)轉(zhuan)速 Main saw speed | 3000rpm |
副鋸(ju)轉速 Scoring saw speed | 12000rpm |
| 主鋸片功率 Main saw blade power | 5.8kw |
副(fu)鋸功率 Scoring saw power | 1.1kw |
主鋸片規(gui)格 Main saw blade specification | 30×300mm |
副鋸(ju)片規格 Scoring saw blade specification | Φ22×Φ120mm |
總功率 Total power | 34kw |
設(she)備尺寸 Equipment size | 4670×2750×3100mm |
工作臺離(li)地高度 Table height | 906mm |
吸塵口數量 Suction port quantity | Φ200×1 |
注(zhu):本司對產品規格(ge)及設計細節不斷改良更新,上述功能(neng)(neng)與參數可(ke)能(neng)(neng)有(you)優化改進,請與授權(quan)銷售單位確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
