門套板開料、銑型一體
優化鋸切方案、高速開料
可單機、可連線作業
- 產品詳情
- 參數視頻
優化鋸切(qie)方案、高(gao)速(su)開(kai)料
Optimized cutting plan, high speed cutting
可單機(ji)、可連線作業(ye)
Sopport one machine or connection operation
門套板開料、銑型一體
Door pocket nesting and milling two-in-one

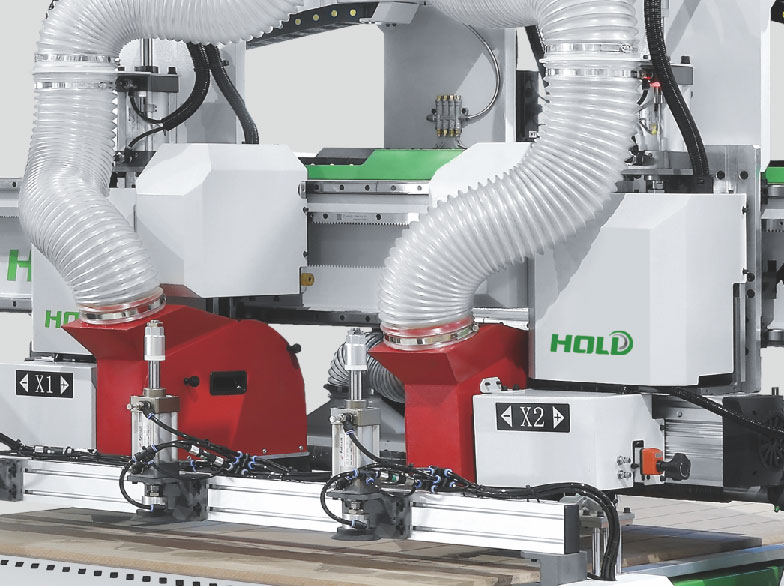

雙(shuang)組(zu)縱鋸結構(gou)
Double group longitudinal saw structure

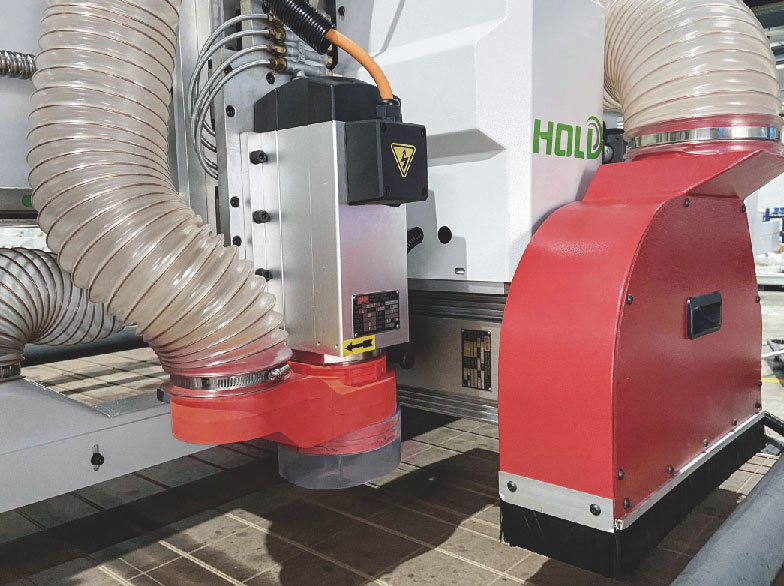

1組橫鋸+1個(ge)銑型(xing)主軸(zhou)
1 cross saw + 1 milling spindle

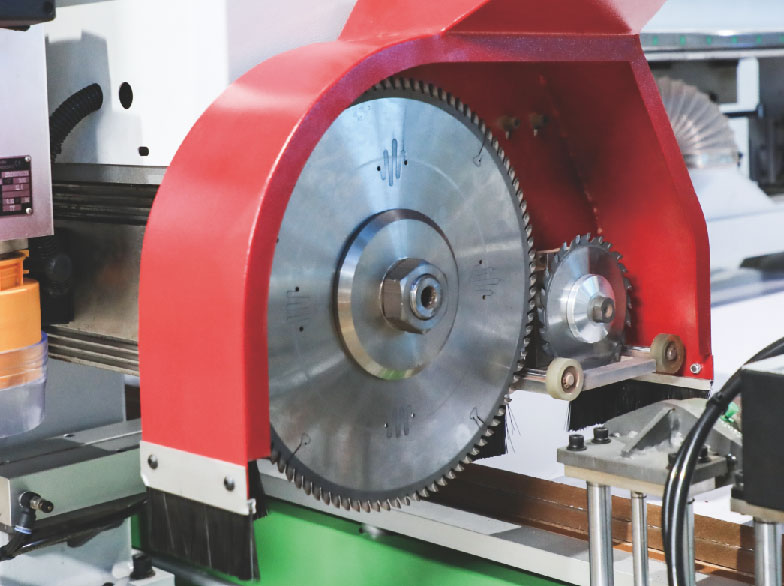

精(jing)密子(zi)母鋸片組結構
Precise main saw and sooring saw blade group structure

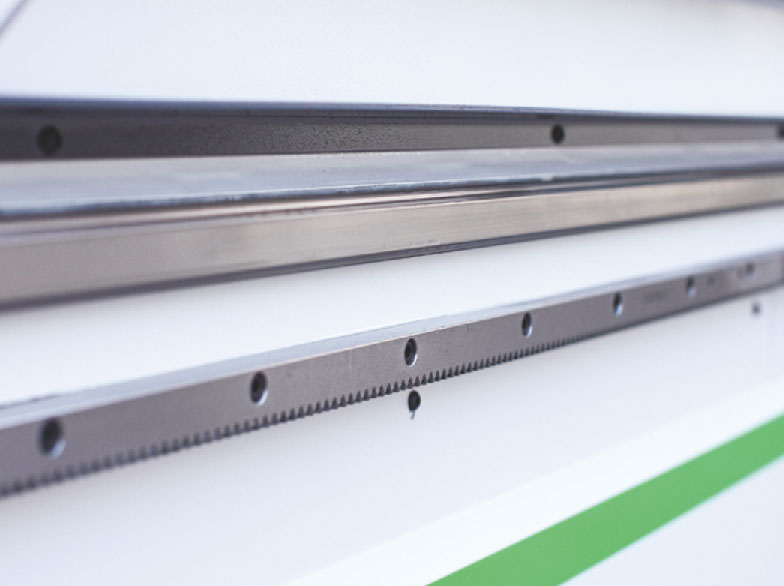

精密導軌+齒(chi)條傳動結構
Precision guide rail + rack drive structure
輔助壓料(liao)壓輯
Auxiliary press roller
前后標配上(shang)下(xia)料(liao)真空(kong)吸盤
Front and rear standard loading and unloadingvacuum suction cups
產品參(can)數
| 設備型號 | HKS211 |
|---|---|
| 加工尺寸 Processing size | 1220×2800×30mm |
副鋸功率 Scoring saw power | 1.1kw |
空行(xing)速度 idle speed | 80m/min |
| 副鋸轉速 Scoring saw speed | 12000 r/min |
| 工作速度 Working speed | 12-18m/min |
副鋸片規格 Scoring saw blade specification | Φ120×Φ22mm |
主鋸(ju)片規格 Processing thickness | Φ300×Φ30 |
副鋸片規格 Scoring saw blade specification | Φ120×Φ20 |
主軸功率(lv) Spindle power | 6kw |
總功率(lv) Total power | 32kw |
主鋸功率 Main saw power | 5.8kw |
設備尺寸 Equipment size | 4700×2850×3050mm |
主鋸轉速 Main sawspeed | 3000 r/min |
工(gong)作臺離地高度(du) Table height | 840mm |
主鋸片規(gui)格 Main saw blade specification | 300×Φ30mm |
吸(xi)塵(chen)口(kou)數(shu)量 Suction port quantity | 200×1+Φ100×1 |
注:本司對產品規格及(ji)設計細(xi)節不斷(duan)改(gai)(gai)良(liang)更新,上述功(gong)能與參(can)數可能有(you)優化改(gai)(gai)進(jin),請與授權銷售單位確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
