門鎖、
合頁、
閉門器精準加工
- 產品詳情
- 參數視頻
門鎖、合頁、閉門器精準加(jia)工(gong)
Precise process for lockhole hinge hole and door closer hole
木門鎖孔(kong)、合(he)頁、頂底槽、孔(kong)槽加(jia)工
Wooden doorlockhole , hinge hole , top and button slot and grooving process

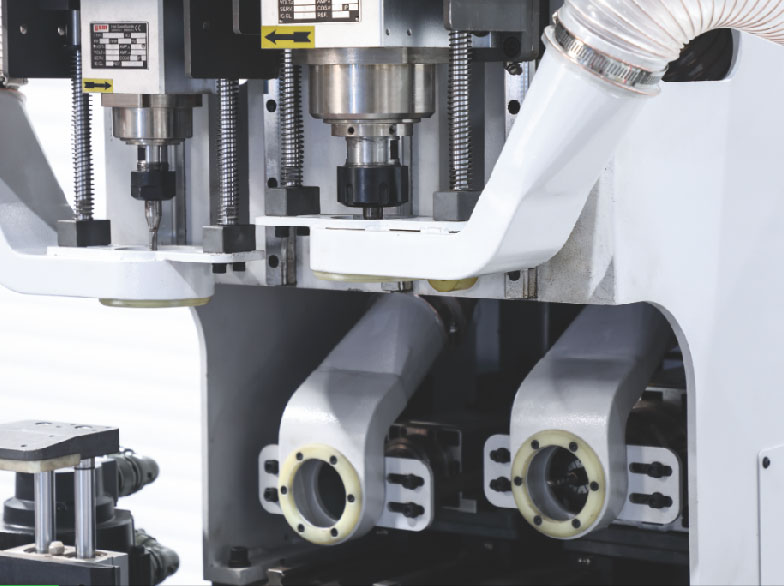

四主軸銑型加工單元
Four-spindle milling unit

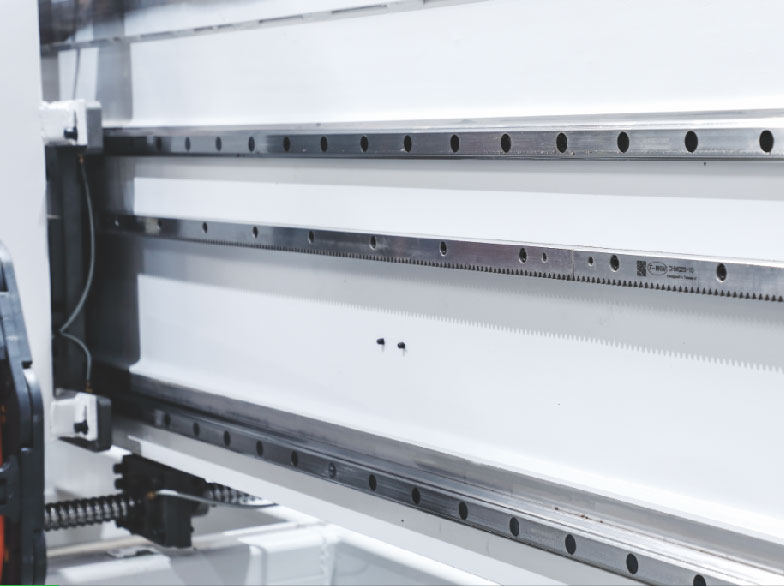

精密導(dao)軌+齒(chi)條傳動結構
Precision guide rail + rack drive structure
長度可調節移動工作臺
Adjustable table length

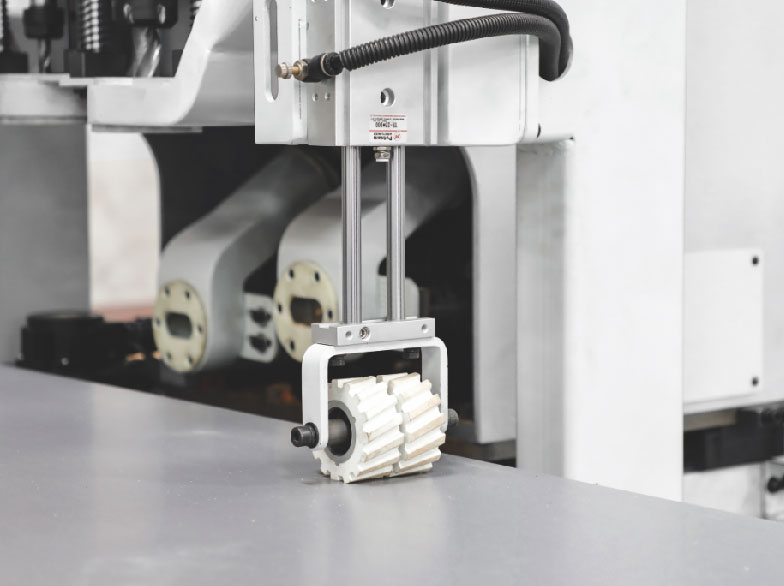

氣動壓料壓輪
Pneumatic pressing wheel

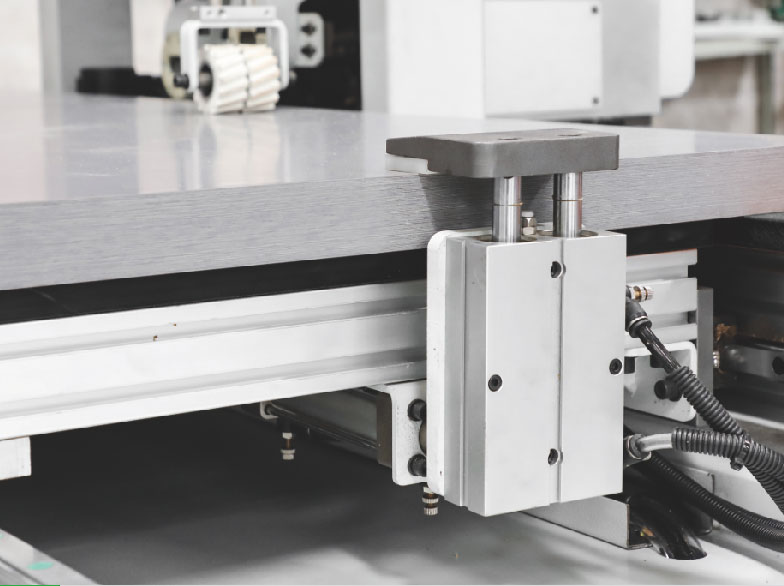

氣動壓料抓(zhua)手(shou)
Pneumatic pressing gripper

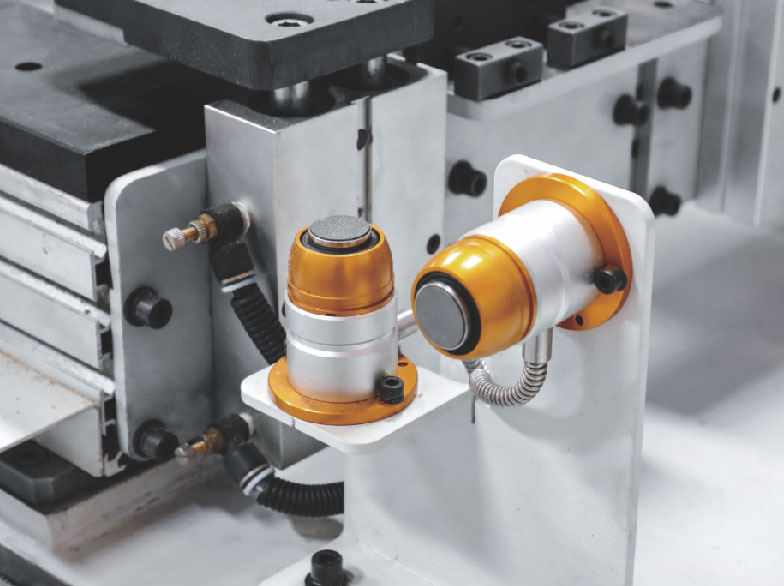

雙軸向精密(mi)對(dui)刀儀
Double axes precision tool setting gauge
產品參(can)數

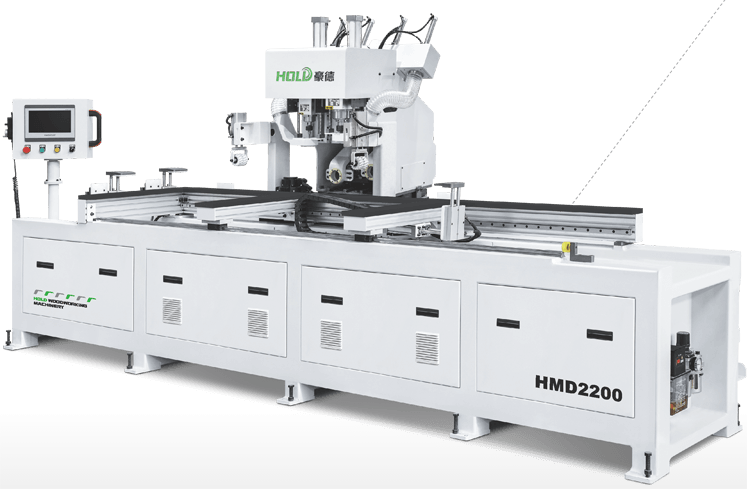

| 設備型號 | HMD2200 |
|---|---|
| 最大加工長度 Maximum processing length | 2800mm |
加工(gong)寬度 Processing width | 300~1200mm |
加工厚度(du) Processing thickness | 35~70mm |
最快(kuai)空程速度 Fastest idle speed | 30m/min |
工(gong)作(zuo)臺(tai)高(gao)度 Table height | 870mm~920mm |
總功率 Total power | 20KW |
設(she)備尺(chi)寸(cun) Equipment size | 4050x1550x1750mm |
注:本司對產品規(gui)格及(ji)設計細節不斷(duan)改(gai)良更(geng)新,上述功能(neng)與(yu)參數可能(neng)有優化改(gai)進,請與(yu)授權銷售單位確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
