木(mu)門快速規方(fang)、四邊(bian)鋸切
Fast squaring and four-side cutting
2組縱鋸+2組橫鋸結構
2 sets of longitudinal saws 2set of cross saw
精(jing)準居中定位
Precise positioning in middle

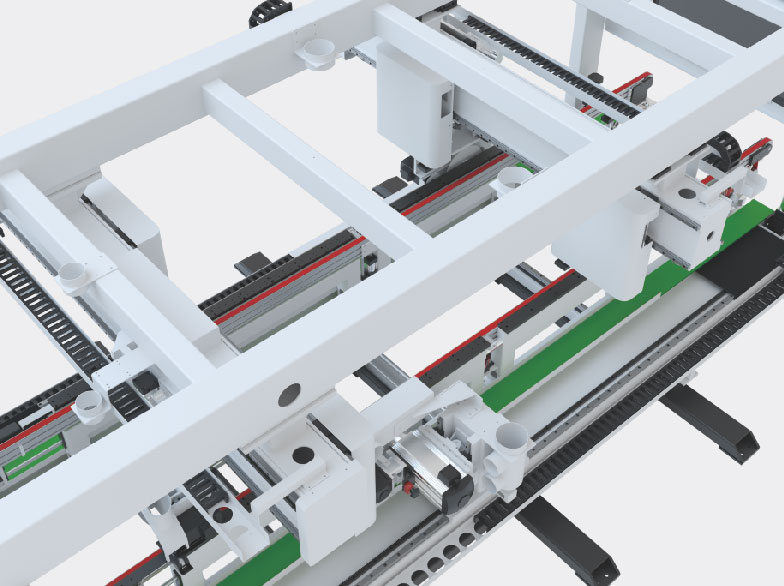

2組縱鋸+2組橫(heng)鋸結構
2 sets of longitudinal saws +2 set of cross saw

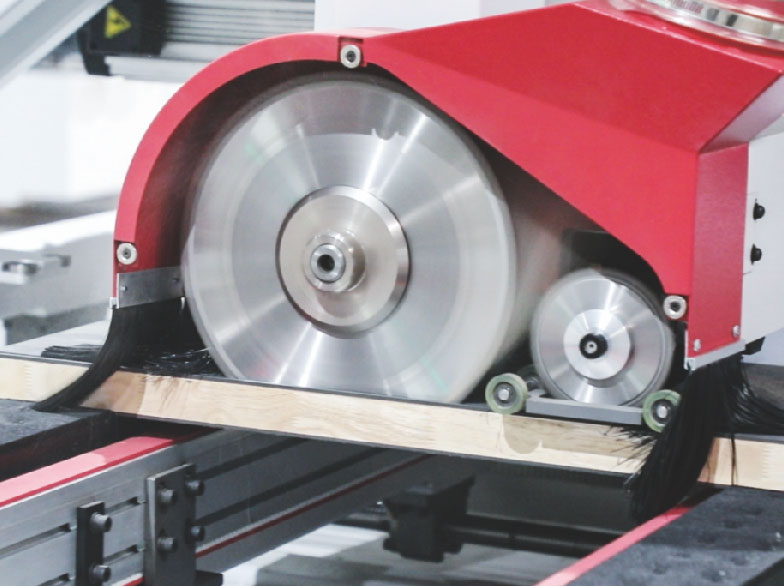

精密子母鋸片組結構
Precise main saw and sooring saw blade group structure

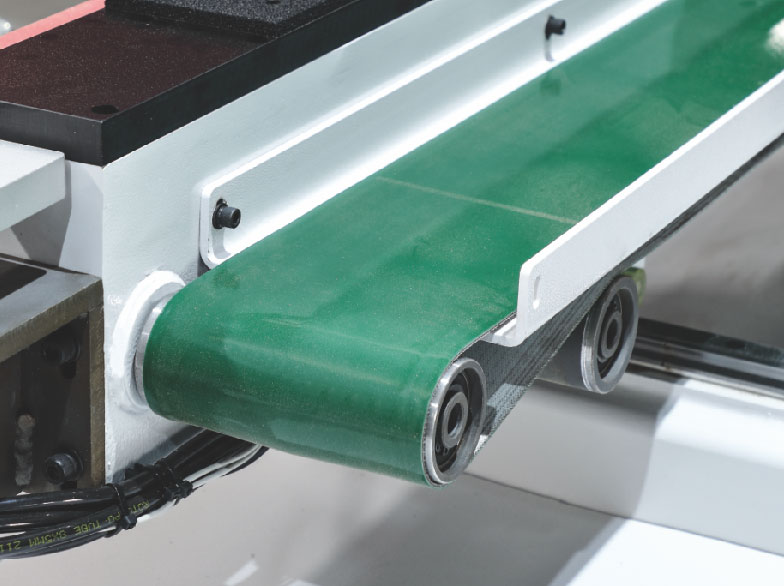

尾料收集皮帶輸送結(jie)構(gou)
Waste material collection belt conveyor structure

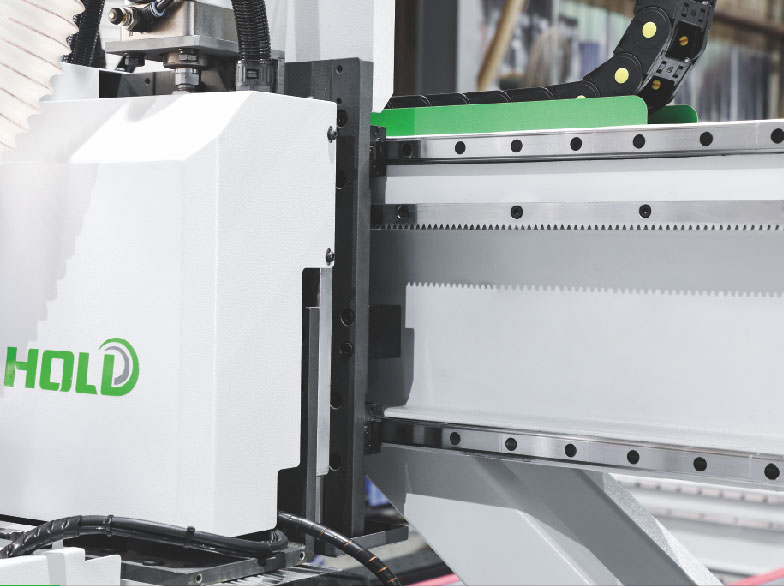

精密導(dao)軌+齒條傳動(dong)結構
Precision guide rail +rack drive structure

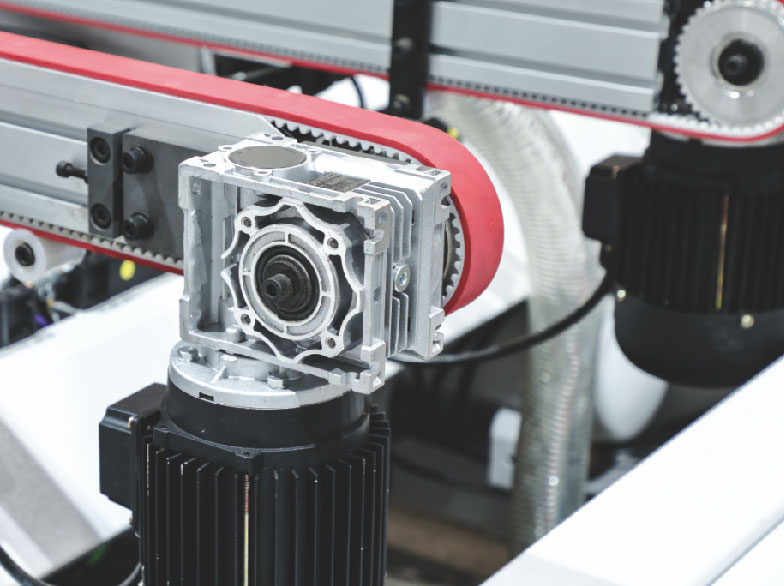

通過式皮帶進出料輸送結(jie)構(雙(shuang)電(dian)機(ji))
Through belt feeding and discharging conveying structure (dual motor)

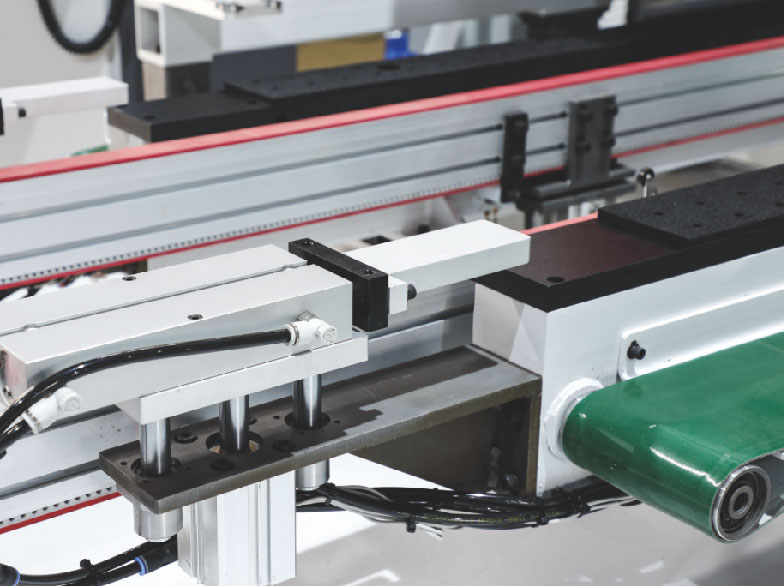

雙(shuang)前擋定位結構(gou)
Double front stopper positioning structure
產品參(can)數
| 設備型號 | HV422 |
|---|---|
| 最小加工尺寸 Min. processing size | 1800×350mm |
鋸座、橫梁移動伺服功率 Saw carriage , beam moving servo power | 0.75kw |
最大加工尺寸(cun) Max. processing size | 3000×1100mm |
| 工作臺離地面高度 Table height | 900mm |
| 加工厚度 Processing thickness | 30-65mm |
真空泵(beng)規(gui)格 Suction port quantity | 5.5kw(160m3/h) |
主(zhu)鋸片規格 Processing thickness | Φ300×Φ30 |
副鋸(ju)片規格 Scoring saw blade specification | Φ120×Φ20 |
總功率 Total power | 37.5kw |
設備尺寸 Equipment size | 4670×2750×3100mm |
鋸座最(zui)大移動速度 Max. moving speed of saw carriage | 40m/min |
吸(xi)塵口數量 Suction port quantity | Φ100×6 |
注:本司對(dui)產(chan)品規(gui)格及(ji)設計細節不(bu)斷改良(liang)更新,上述功能與(yu)參(can)數可(ke)能有優化(hua)改進,請與(yu)授(shou)權銷(xiao)售單位確(que)認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
