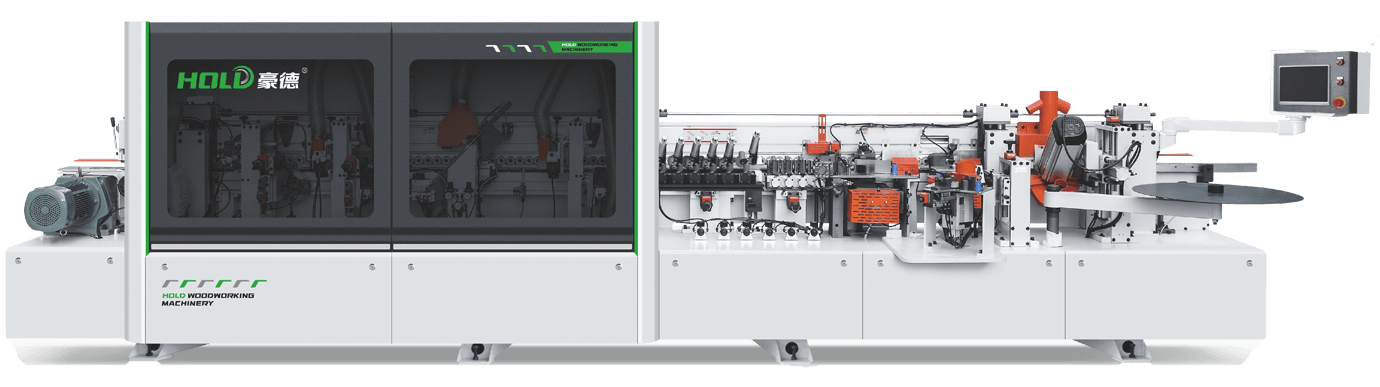

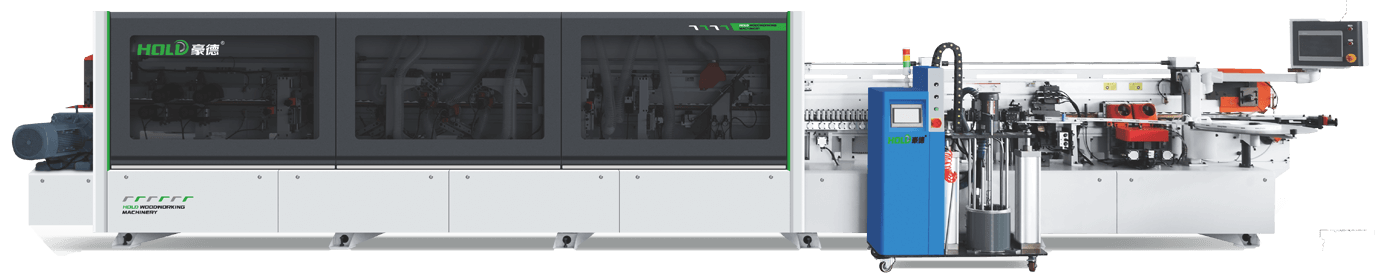

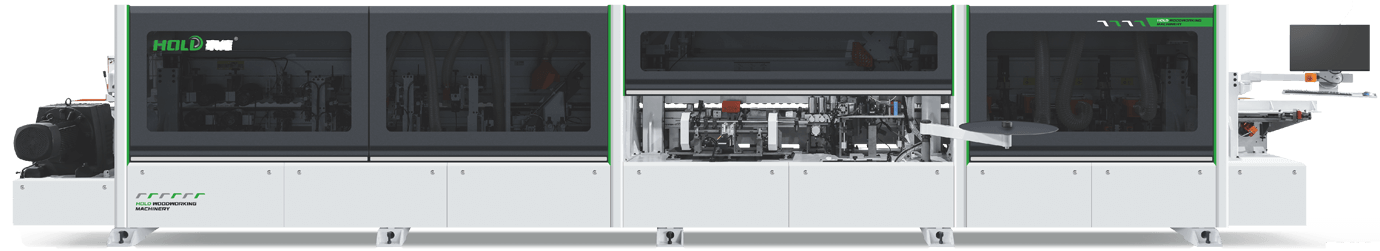

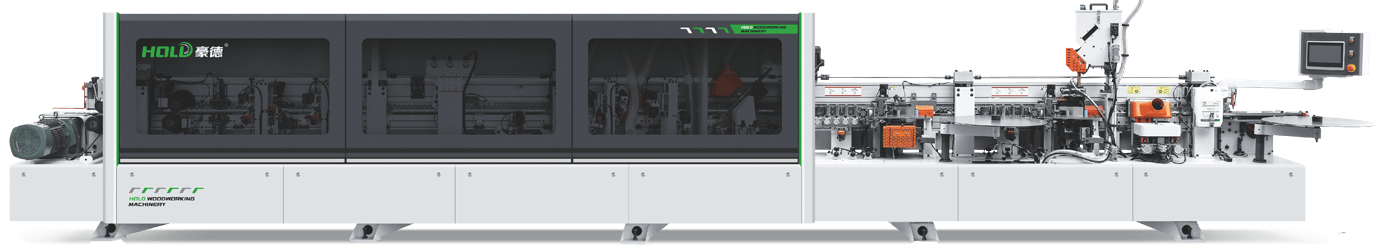

Heavyduty automatic highspeed edge bandingmachine
重型全自動高速封邊機

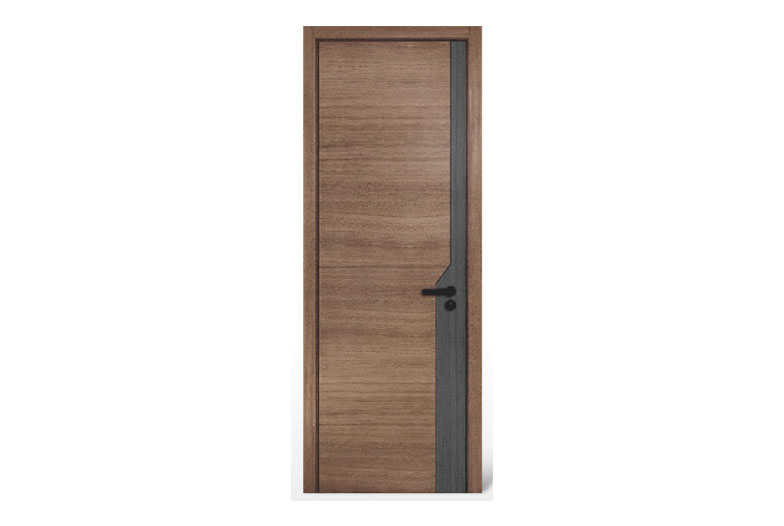

木門封邊(bian)工藝
Wooden door sealing process
金剛石預銑刀
配65mm預銑刀，配加厚導向(xiang)板
Diamond pre-millingcutter,
With 65mm pre-milling cuter and thickenedguide plate
兩組輔助托梁
TWO sets of auxiliary beam
現場操作視頻
Operating video
產品參數
| 設備型號 | HD731JP | HD730JP | HD730JLLP |
|---|---|---|---|
升降(jiang) Lifting | 電動(dong)升(sheng)降 Elecric Lifting | ||
| 總功率(kw) Total power(kw) | 19.44 | 18.7 | 29.7 |
外形尺寸(mm) overall size(mm) | 7400 x 900 x 1700 | 6500 x 900 x 1700 | 7400 x 900 x 1700 |
| 進給速度(m/min) Edge thickness(mm) | 14-20-23 | 14-20-23 | |
封邊帶厚度(du)(mm) Max.depth of horizontal drilling head | 0.4-3 | 0.4-3 | 0.4-3 |
板料厚度(mm) Panel thickness(mm) | 10-60 | 10-60 | 10-60 |
板(ban)料長度(mm) Panel length(mm) | ≥120 | ≥120 | ≥120 |
板料寬度(mm) Panel width(mm) | ≥100 | ≥80 | ≥80 |
| 工作氣壓(Mpa) Working pressure(Mpa) | 0.6 | 0.6 | 0.6 |
| 最小板材尺寸(mm) Min.panel size(mm) | 120x100 | 120x100 | 120 X 80 |
注(zhu):本司對產品規格(ge)及設(she)計細節(jie)不(bu)斷改良(liang)更(geng)新,上述功能(neng)與(yu)參數可能(neng)有(you)優化改進,請與(yu)授(shou)權銷售單位確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
