Heawy duty automatic high speed edge banding machine
重型全自動高速封邊機
鋁蜂(feng)窩板材封邊工藝
Special edge banding machine for aluminum honeycomb panel
履帶(dai)壓料(liao)(選(xuan)配(pei))
Belt feeding (optional)
PUR自動(dong)注(zhu)膠機(ji)(選配)
PUR automatic glue injection machine (optional)

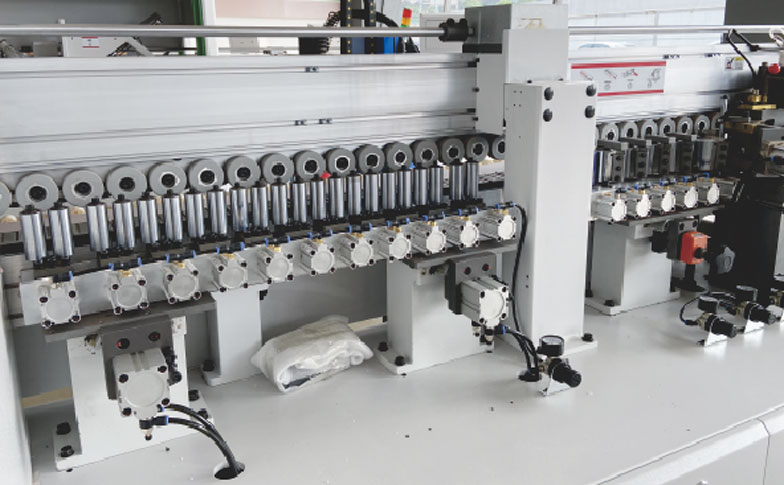

加長壓貼(tie)機構
Lengthened pressing mechanism

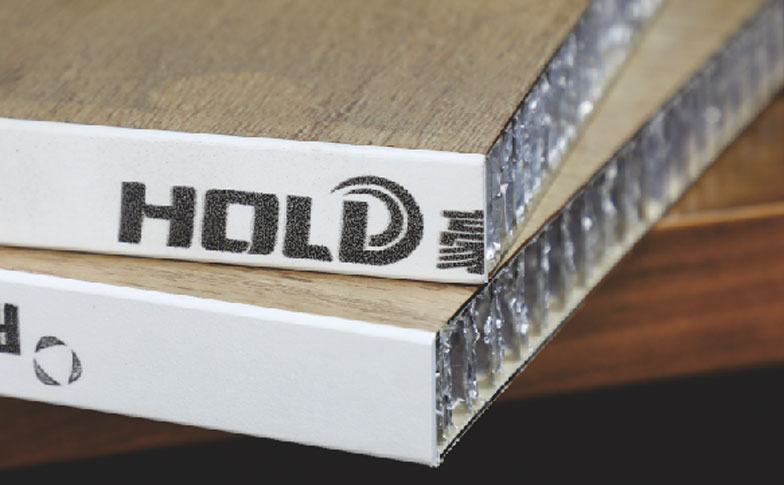

鋁蜂窩板樣板
Aluminum honeycomb panel template

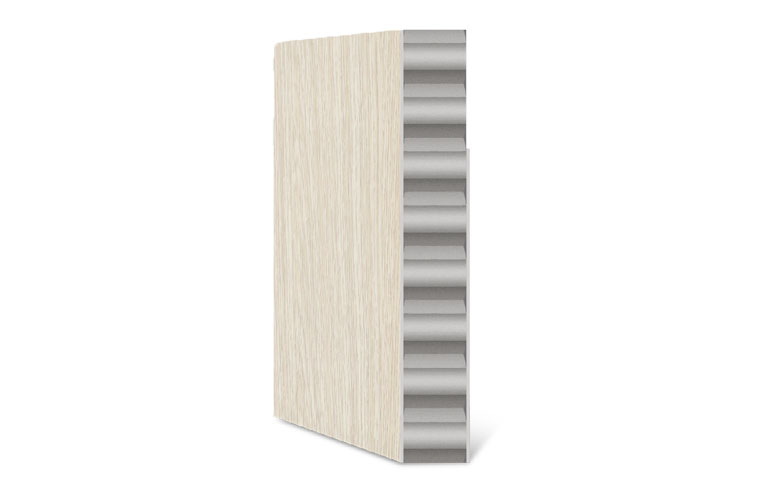

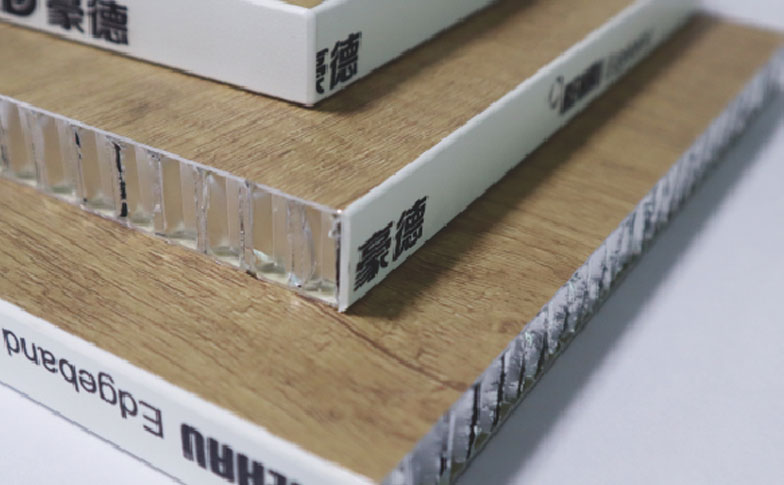

鋁蜂窩板(ban)樣板(ban)
Aluminum honeycomb panel template
現場操作視頻
Operating video
產品參(can)數(shu)
| 設備型號 | HD691JP | HD690J |
|---|---|---|
升降 Lifting | 電動升降 Elecric Lifting | |
| 總功率(kw) Total power(kw) | 17.72 | 16.25 |
外(wai)形尺寸(mm) overall size(mm) | 10200 x 900 x 1700 | 8500 x 900 x 1700 |
| 進給速度(m/min) Edge thickness(mm) | 鋁蜂(feng)窩板(ban):14 曾(ceng)通板:14-20-23 dluminum honeycomb panel: 14; rdinary panel: 14-20-23 | |
封邊帶厚度(du)(mm) Max.depth of horizontal drilling head | 1.5-2.0 | 1.5-2.0 |
板料厚度(du)(mm) Panel thickness(mm) | 10-60 | 10-60 |
板料長度(du)(mm) Panel length(mm) | ≥120 | ≥120 |
板(ban)料寬度(mm) Panel width(mm) | ≥100 | ≥100 |
| 工作氣壓(Mpa) Working pressure(Mpa) | 0.6 | 0.6 |
| 最小板材尺寸(mm) Min.panel size(mm) | 120x100 | 120x100 |
注:本司對(dui)產品規格及設(she)計細節不斷改良(liang)更新,上述功能與參(can)數可能有(you)優化改進,請與授權銷售單(dan)位(wei)確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
