櫥柜/門板一鍵定制神器
Cabinets, doors can be custonized by one button
加工速(su)度12-25m/min(根據刀具及板材不(bu)同,速(su)度不(bu)同)開料損耗最低僅6mm路徑
自動上下料(liao)批量開料(liao)
Processing speed can reach to 12-25m/min( According to different cuttersand materials, the speed will be different)
Lowest cutting loss is only 6mn path
Automatic loading and unloading, batch production
A:12直排換刀(dao)(dao)刀(dao)(dao)庫
A:12 straight tool change magazine
B:自動貼標機
B:Automatic labeling machine

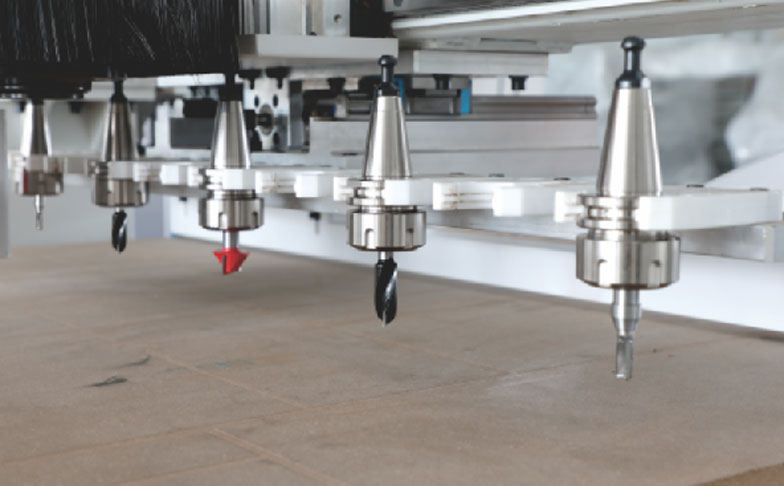

直(zhi)排換刀系統
Straight tool change system
自動貼標(biao)機
Autormatic laboling machine

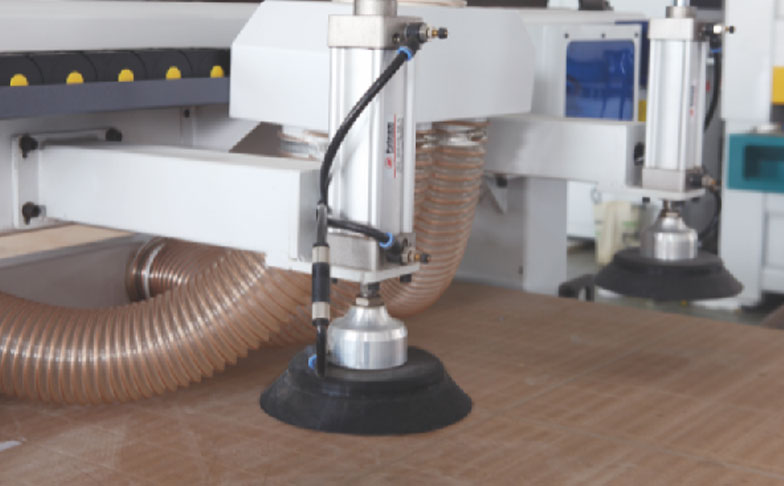

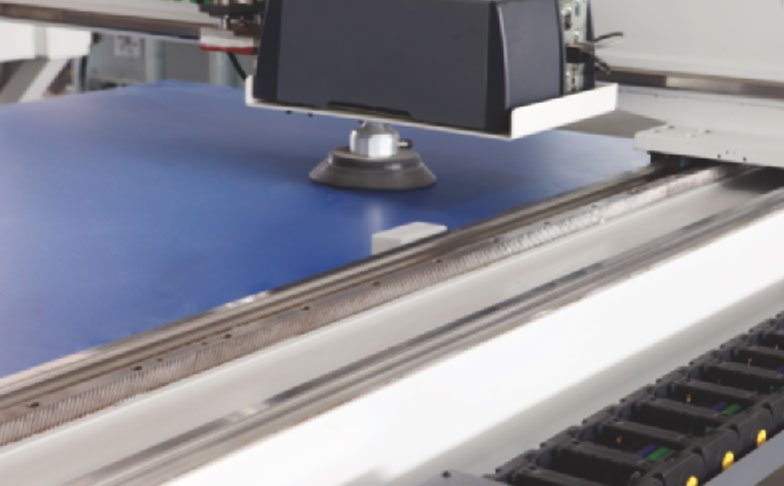

吸盤(pan)強力抓板裝(zhuang)置
Suction cup strong grasping panel device

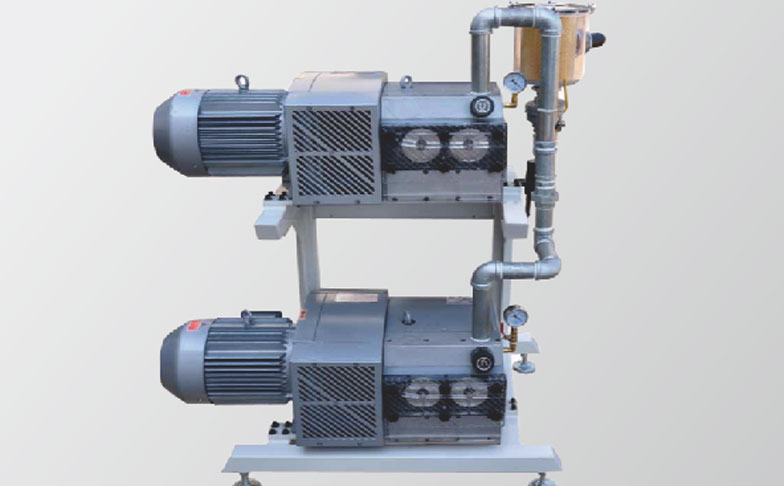

干(gan)式雙聯泵(選(xuan)配)
Dry vacuum pump (optional)
單面鉆孔
Single-sided drilling

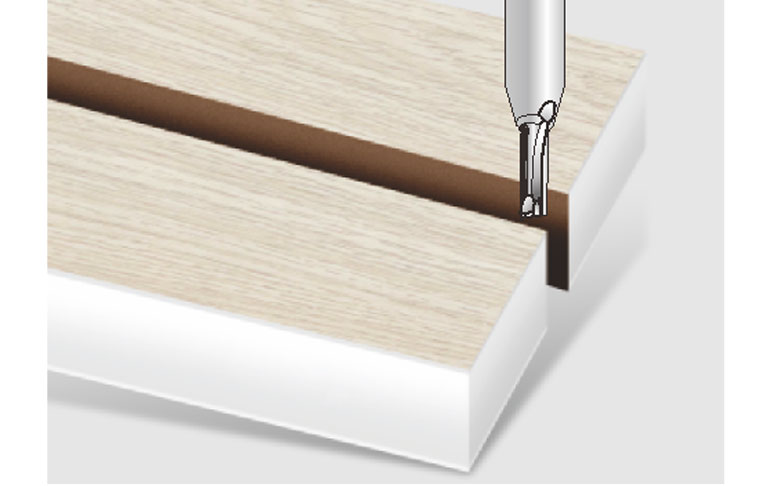

柔性開料(liao)
Hexible cutting

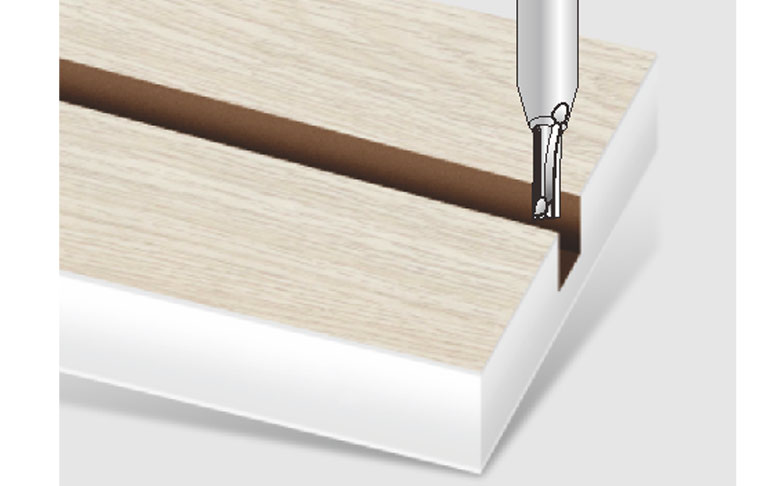

開槽制榫
Grooving & tenon
銑(xian)型(xing)
Milling shape
現場操作視頻
Operating video
產品參數(shu)
| 設備型號 | HE409EB |
|---|---|
加工尺寸 Working area | 1220×2750×30mm |
工作行程 Traveling area | 1850×3500×260mm |
空行速度(du) ldling speed | 80m/min |
工作(zuo)速度(du) Workingspeed | 12-25m/min |
主軸(zhou)功率 Spindle power | 9.0kw(鉆包2.2kw) 9.0kw(2.2kw drill pack) |
主軸轉速 Spindle speed | 18000r/min |
工作電壓 Working voltage | AC380V/3Ph/50Hz |
驅動系(xi)統(tong) Driving system | 伺服驅動, Servo drive |
定位方式 Positioning method | 高精度雙定位氣缸(gang)+定位靠檔(dang) High-precision double positioning cylinder+ positioning by gear |
臺面結構 Tabel Structure | 分區吸附臺面 Zone adsorption table |
| 水循環真空泵 Water cooled vacuum pump | 11kw |
外形尺寸 Dimensions | 8200×2750×3150mm |
吸塵口 Suction port | Φ200/Φ100 |
總功率 Total power | 34kw |
重量 Weight | 4.2T |
注:本司(si)對產品規(gui)格(ge)及設計細節不(bu)斷改良更新,上(shang)述功能與參數可能有優化改進,請與授權(quan)銷售單位確認。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
