CNC router
數控(kong)開料機
開料、開槽(cao)、鉆孔(kong)一氣呵成
Cutting, grooving, drilling, at one time
6kw風冷主軸
6kw air-cooled epindle

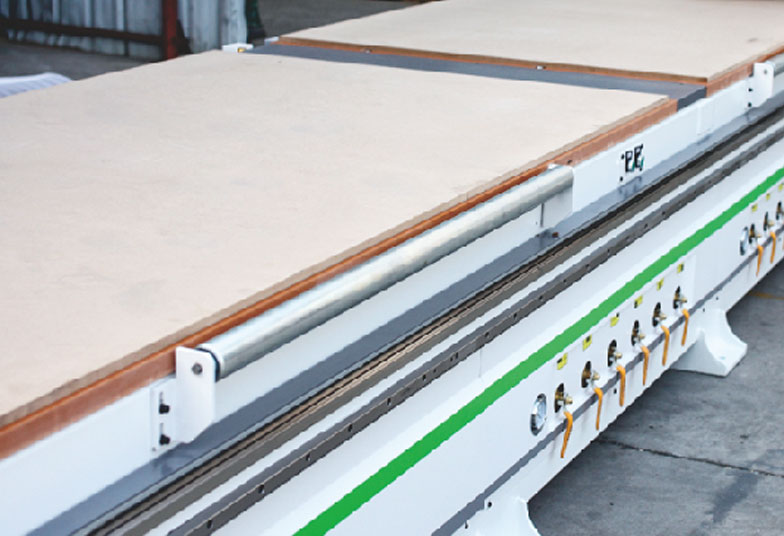

雙(shuang)工(gong)作臺加工(gong)(選配)
Doublo tebles (optional)
產品(pin)參數

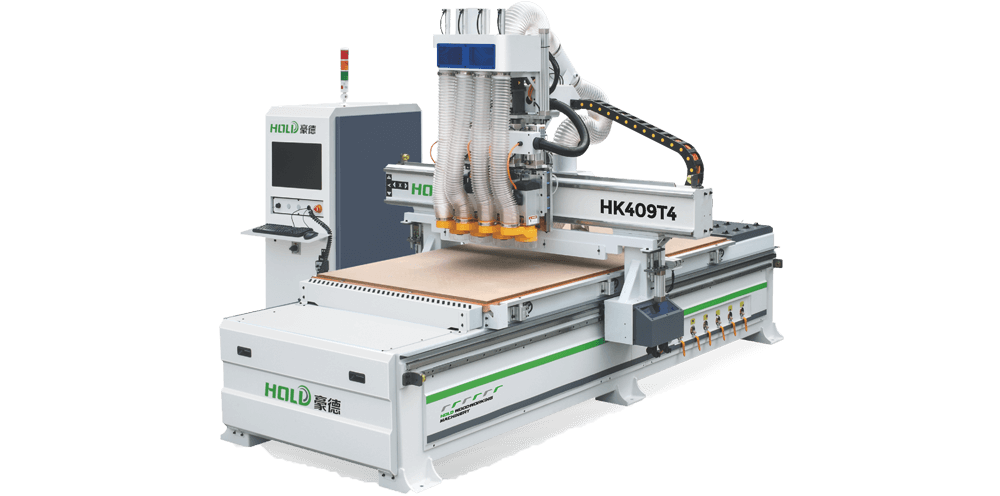

| 設備型號 | HK409T4 |
|---|---|
加工尺寸Working area | 1220×2750×30mm |
工作行程 Traveling area | 1850×3500×260mm |
空行(xing)速(su)度 ldling speed | 80m/min |
工作(zuo)速(su)度 Workingspeed | 12-25m/min |
主軸功(gong)率(lv) Spindle power | 6.0kw×4 |
主軸轉速 Spindle speed | 18000r/min |
工作電壓 Working voltage | AC380V/3Ph/50Hz |
驅(qu)動系統 Driving system | 伺服驅動, Servo drive |
定位方式 Positioning method | 高精度雙定位(wei)(wei)氣缸+定位(wei)(wei)靠檔 High-precision double positioning cylinder+ positioning by gear |
臺面結構 Tabel Structure | 分區吸附臺面 Zone adsorption table |
| 水循環真空泵 Water cooled vacuum pump | 11kw |
外形尺寸 Dimensions | 4250×2750×3150mm |

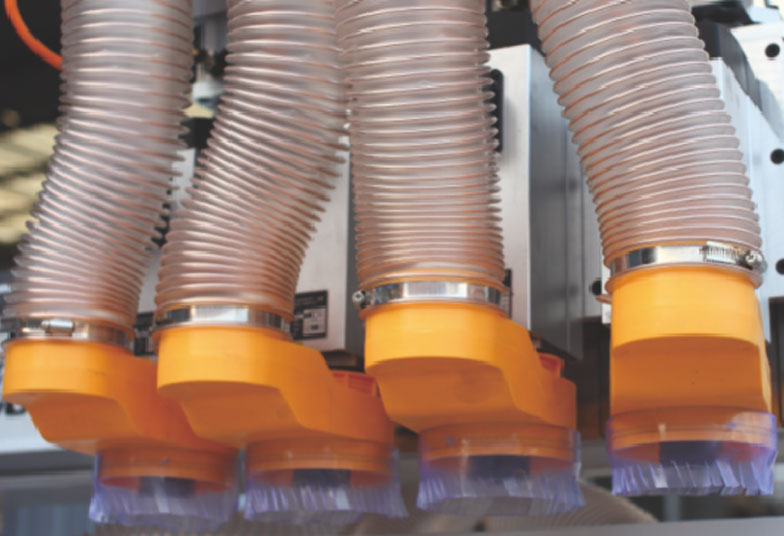

吸塵口 Suction port | Φ200/Φ100 |
總功率 Total power | 41kw |
重(zhong)量 Weight | 2.2T |
注:本司(si)對產品規(gui)格及設(she)計細節不斷改良更新(xin),上述功能(neng)與(yu)(yu)參(can)數可能(neng)有(you)優化改進,請與(yu)(yu)授權銷售(shou)單位(wei)確認(ren)。
The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
